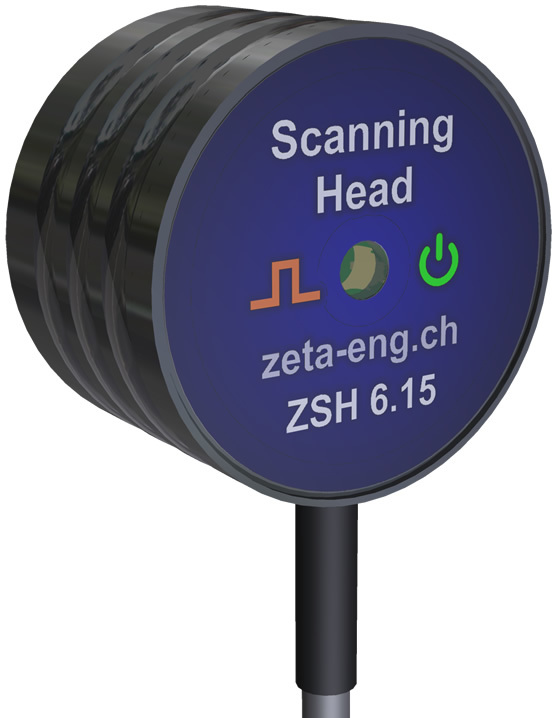

Optoelectronic scanning head ZSH 6.15

Article number: ZSH-6.15

Universal scanning head for all electronic meters with optical pulse outputs

  • Suitable for pulse frequencies up to 2 kHz as well as 8 kHz modulated pulse outputs
  • Fast and accurate output signal
  • Insensitive to ambient light

The scanning head ZSH 6.15 is available with 6 different connectors.

Electrical specifications
  • Operating voltage UB: 8...30 VDC
  • Current consumption at RL = 10 kOhm: 3...13 mA
  • Rise time of output signal: <5 microseconds
  • Constant pulse length below 800 Hz: 1 ms
  • Constant pulse-pause ratio above 800 Hz

In addition to a red pulse-LED a green LED shows the state of operation.

Mechanical specifications
  • Head diameter: 32 mm
  • Head height: 22 mm
  • Weight: 110 g, including 4 m cable and connector
  • Case material: Delrin® (POM), black
  • Magnetic holding: ~15 N
  • Cable length: 4 m

A ring-shaped permanent magnet in the head guarantees a proper and easy positioning.

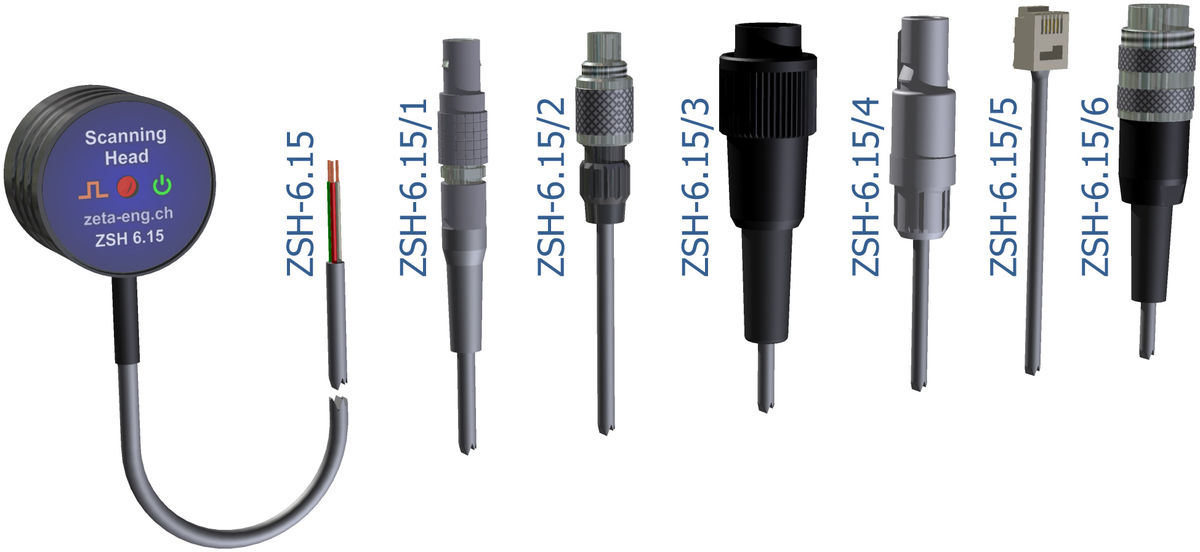

ZSH 6.15 with connectors



Details can be found in the PDF files listed below
